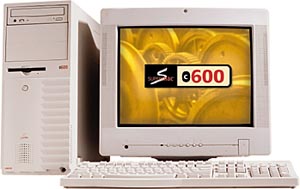

The SuperMac C600 mini-tower from UMAX Computer Corporation is designed for fast, efficient work at home, office or home office. Get organized, stay connected, have fun, and get stuff done with some of the greatest features around. Truly expandable and available with 180MHz, 200MHz, 240MHz or 280MHz processors. You choose the power level (and integrate the extras) you need for work or for play.
| Model/Speed (in MHz) |
Processor (CPU) |
Upgradeable
Processor |
RAM |
Hard Disk
Drive |
CD-ROM
Drive |
L2 Cache |
VRAM |
| C600/180 |
603e |
Yes |
16MB |
1.2GB |
8x |
256KB |
1MB |
| C600/200 |
603e |
Yes |
16MB |
2GB |
8x |
256KB |
1MB |
| C600e/200 |
603e |
Yes |
32MB |
2GB |
12x |
256KB |
1MB |
| C600/240 |
603e |
Yes |
24MB |
2GB |
8x |
256KB |
1MB |
| C600LT/240 |
603e |
Yes |
24MB |
2GB |
12x |
256KB |
4MB |
| C600vPC/240 |
603e |
Yes |
24MB |
3GB |
24x |
256KB |
1MB |
| C600x/240 |
603e |
Yes |
24MB |
3GB |
12x |
1MB |
1MB |
| C600x/280 |
603e |
Yes |
32MB |
4GB |
12x |
1MB |
2MB |
Technical Specs
Upgradable Microprocessor
- PowerPC 603e CPU card
- Primary processor upgradeable with a 603e Socket Card
- Built-in floating-point processor and 32K on-chip cache
- 40 MHz, 64-bit bus (80 MHz with CacheDoubler-C600x models only)
Memory
- 16 MB RAM on motherboard, expandable to 144 MB
- 2 DIMM slots (24 MB and 32 MB C600 configurations have one DRAM slot populated with an 8 MB or 16 MB DIMM, respectively)
- DIMM memory modules should be non-composite, 168-pin, 5 volt, 64-bit wide with 70 ns access time or faster. Compatible with EDO or fast-page DRAM.
- 256K Level 2 Cache, upgradable to 1 MB (1 MB In-line on the C600x)
Disk Drives
- Internal SCSI 100MB Iomega Zip drive (C600e/200 model only).
- Internal IDE hard drive
- Internal 3.5" SWIM III 800/1.44 MB floppy disk drive that reads, writes, and formats Macintosh, Windows, DOS, OS/2, and ProDOS disks
- Internal CD-ROM drive
SCSI Interface
- SCSI bus allows connection of up to six SCSI devices
Expansion
- 3 PCI Slots for PCI cards with standard brackets (2 open in C600x/240, 1 open in C600x/280). All PCI cards should not exceed a total of 90 watts.
- 2 front-accessible 5.25" drive bays available
- 2 internal 3.5" drive bays available
- 2 serial ports
- 1 ADB port
Graphics
- 1 MB VRAM
- 2 MB 2D & 3D Graphics Accelarator Video Card (C600x/280 model only)
- Dual monitor support in C600x/280 via on-board video and video card
- 16-bit color up to 800-by-600 pixel resolution; 8-bit color up to 1,024-by-768 pixel resolution (monitor must support EVGA mode to display 1024-by-768 resolution).
Audio
- 16-bit CD-quality SRS surround sound
- Stereo audio in/out jacks.
- Supports Apple PlainTalk microphone
- Jabra EarPhone - headset microphone for telephony
Network
- 33.6 Kbps fax-data-voice/modem included with some models
- Two high-speed RS-232/RS-422 serial ports compatible with LocalTalk and GeoPort
Keyboard and mouse
- ADB extended keyboard included
- ADB mouse included
Size and Weight
- Height: 16.0 inches (40.6 cm)
- Width: 6.75 inches (17.1 cm)
- Depth: 15.5 inches (39.2 cm)
- Weight: 16 pounds (7.2 kg)
Electrical Requirements
- Line voltage: 100-105 or 200-240 VAC (user selected)
- Frequency: 50/60 Hz, 8/4 amps single phase
Power Supply
- PC-Standard 200W soft/trickle power supply, which allows computer to be turned on or off through software or the keyboard's power-on key
Operating Environment
- Operating temperature: 50 to 104 degrees F (10 to 40 degrees C)
- Storage temperature: -40 to 116 degrees F (-40 to 47 degrees C)
- Relative humidity: 5 to 95%, non condensing
- Maximum altitude: 10,000 feet (3,048m)
|
